Published 16 June 2026
One of the most common reasons people hesitate over a home lift is the worry that their house is too small or their ceilings too low. In practice, modern domestic lifts are designed to fit ordinary homes, and the space they need is more modest than most people expect. This guide explains the footprint, the headroom and the other measurements that matter, so you can judge whether a lift will fit before you book a survey.
The footprint is smaller than you think

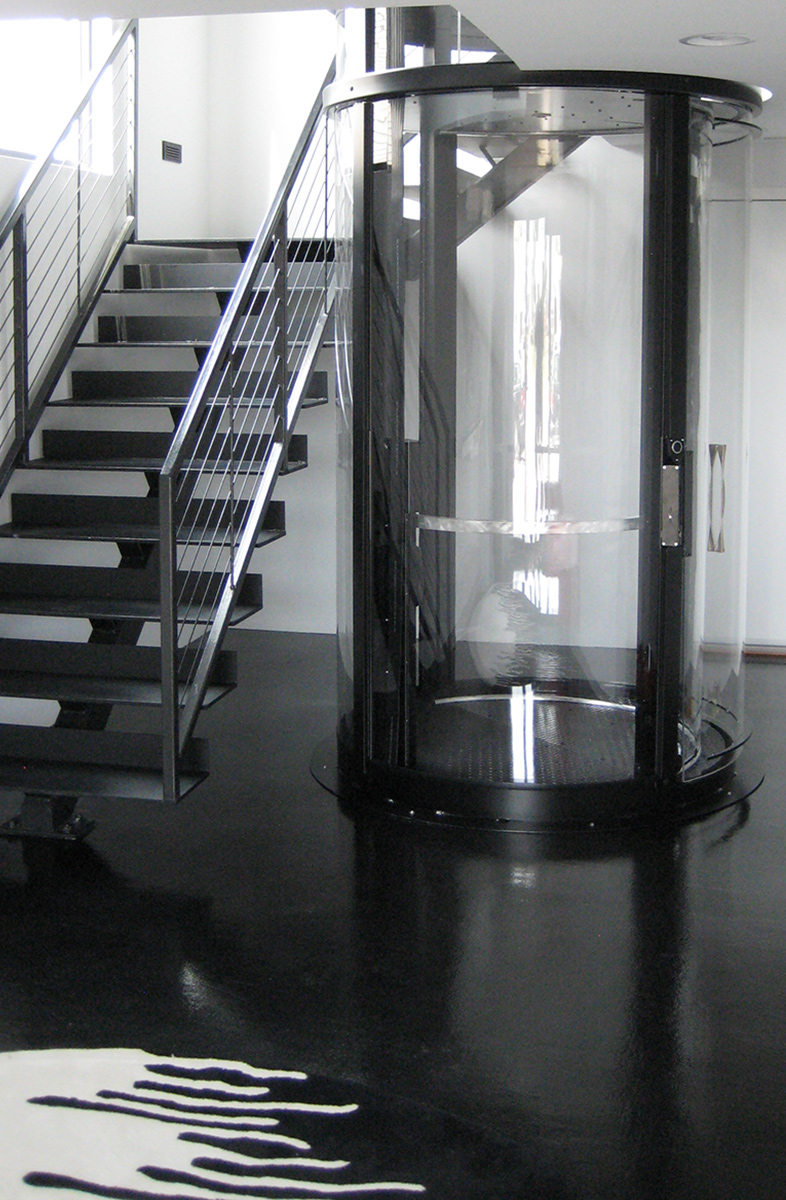

A domestic home lift takes up surprisingly little floor space. A self-supporting or through-floor lift typically needs an area not much larger than an armchair on each floor, often around one square metre, plus a clear path to step or roll on and off. Because these lifts do not need a separate shaft, a pit dug into the ground or a machine room, the space they occupy is essentially just the lift itself. A wheelchair platform lift needs a larger footprint than a seated model, because the platform has to fit the chair with room to manoeuvre, so this is worth factoring in early if a wheelchair is involved.
Lining up the two floors
For a lift that travels between storeys, the position downstairs and the position upstairs need to line up, with a suitable spot in the ceiling for the opening. A common and convenient arrangement is to land the lift in a corner of a room downstairs and come up into a bedroom or landing above. The installer looks for a location where both levels work and where the floor structure can take the opening. There usually needs to be a clear landing area at each floor, especially for a wheelchair, so the user can get on and off comfortably.
Ceiling height
Headroom matters, but less than people fear. Many lifts are designed to work with standard ceiling heights, and the minimum required headroom on the upper floor commonly starts at around 2.3 metres. If your ceilings are lower than average, do not assume a lift is ruled out, as some models can be adjusted, with the cabin shortened slightly to suit a reduced ceiling height. A survey is the only way to confirm it, but low ceilings are often workable.
Power and access
Beyond the floor space and headroom, a home lift needs only a few practical things: a stable area to stand, room for the opening between floors, and access to an ordinary household power supply, as many lifts simply plug into a standard socket. Our guide to home lift running costs and power covers the electrical side in more detail.
The survey settles it
Every reputable supplier carries out a home survey before quoting, and this is where the measurements are confirmed properly. The technician checks the available space, the ceiling height, the floor structure and the weight capacity needed, then advises on the best location and model. If you are weighing up whether a lift will fit, our guides to types of home lift and what to consider before installation are a good place to start.
At a glance
- Footprint: small, often around one square metre per floor, because there is no shaft, pit or machine room.
- Wheelchair models: need a larger platform and footprint than a seated lift.
- Lining up floors: the upper and lower positions must align, with a clear landing area at each level.
- Ceiling height: commonly from around 2.3 metres, but lower ceilings are often workable with an adjusted cabin.
- Also needed: a stable floor area and an ordinary household power supply.
Frequently asked questions
How much space does a home lift need?
Less than most people expect, often around one square metre per floor for a seated or self-supporting lift, plus room to get on and off. There is no need for a shaft, pit or machine room.
Can I have a home lift with low ceilings?
Often yes. Minimum headroom commonly starts at around 2.3 metres, but some models can be adjusted with a shortened cabin to suit lower ceilings. A survey confirms what will work.
Does a wheelchair home lift need more space?
Yes. The platform must fit the wheelchair with room to manoeuvre, so the footprint is larger than a seated lift, and a clear landing area is needed at each floor.
Where do home lifts usually go in a house?
A common arrangement is a corner of a downstairs room rising into a bedroom or landing above. The installer finds a spot where both floors line up and the structure can take the opening.
How do I know for certain that a lift will fit?
A home survey is the only way to confirm it. The technician measures the space, ceiling height, floor structure and weight needs, then advises on the best location and model.
